Faircloth C5 Corvette Rear wing FC12

The FC12 Wing by Faircloth Composites is a high-performance, single-element rear wing designed specifically for the C5 Corvette, but it can be tailored to various applications with customized widths and mounting options.

Key Features:

• Customizable Width: Available in widths up to 80 inches, making it adaptable to different applications.
• 12-Inch Chord Wing: The 12" chord provides a large surface area for increased aerodynamic performance.

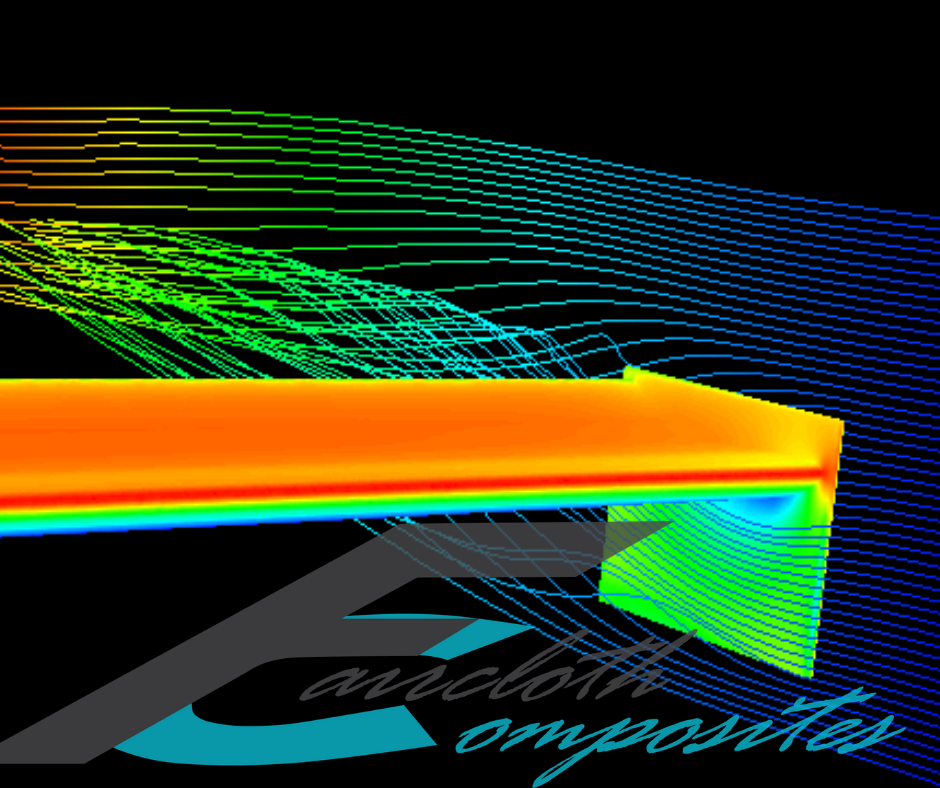

• Wind Tunnel Verified: Designed for efficiency with a 7.3 L/D ratio (lift-to-drag ratio), validated in the wind tunnel. It excels in both low-speed autocross settings and high-speed road courses, particularly where speeds exceed 100 mph.

Material & Build Quality:

• Made from 100% carbon fiber using CNC molds, ensuring precision fit, superior strength, and stiffness, while being incredibly lightweight.
• Epoxy-infused intermediate modulus carbon fiber construction with a 60%/40% fiber-to-resin ratio, providing the performance benefits of carbon fiber at a cost-effective price.
• No cheap poly gel coat to chip away over time, ensuring long-lasting durability.

Mounts & Uprights:

• Includes full carbon fiber mounts, 12"x12" endplates, and carbon fiber uprights as standard.
• Mounts are designed to fit seamlessly between the tail lights of a C5 or C6 Corvette without requiring modifications to the tail light housings or losing light functionality.
• The lower uprights attach directly to the bumper beam for structural support, while the upper section allows for height adjustments without the need to remove the bumper cover. This modular design makes adjustments quick and easy.

Additional Information:

• UV and Water Protection: A clear coat is recommended for carbon fiber parts that will be exposed to UV light and moisture, ensuring longevity and aesthetic integrity.
• Made-to-Order: All wings are made to order, and the production lead times may vary. Custom applications can be discussed for specific needs.

This FC12 rear wing is ideal for C5 Corvette owners seeking an aerodynamic advantage on both the track and autocross events, with a lightweight, durable, and customizable design.
