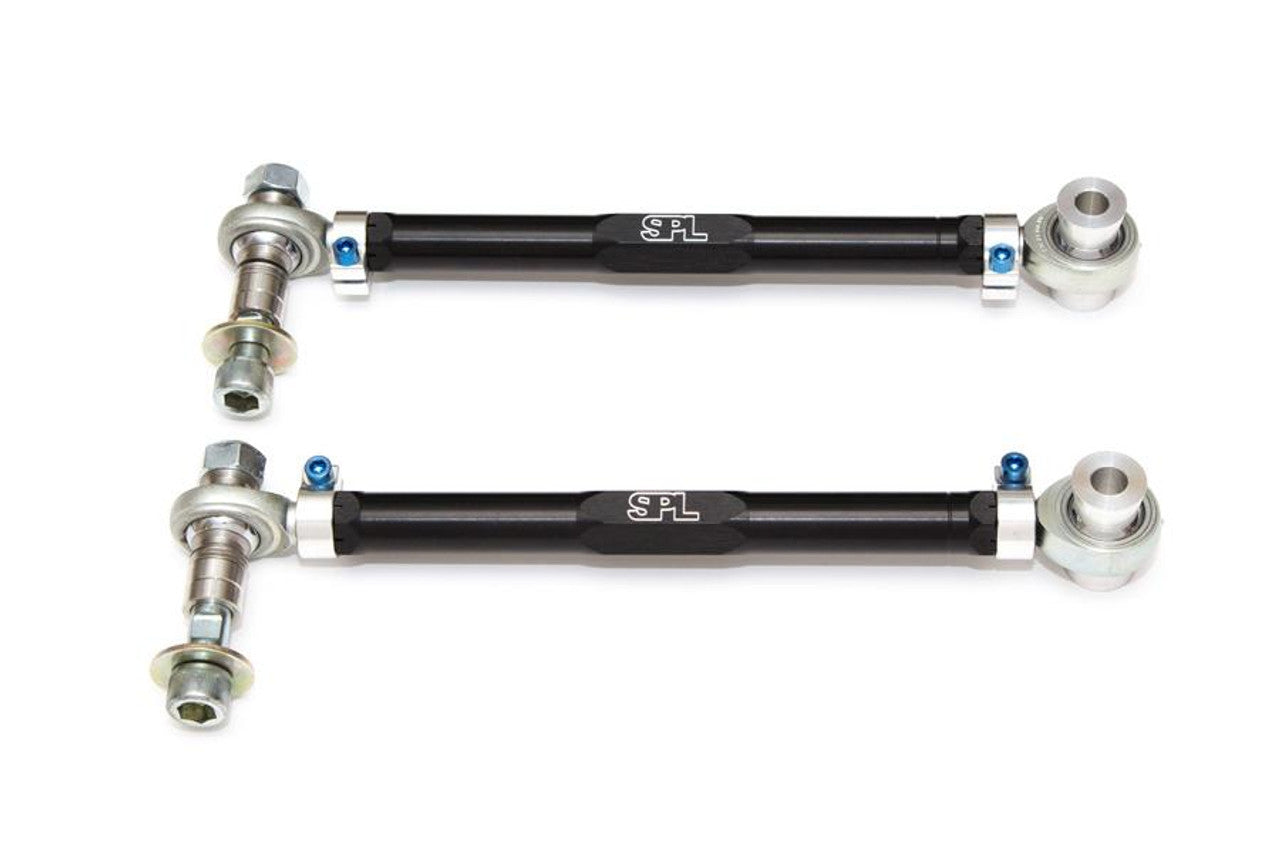

The SPL Mazda NC Miata Rear Toe Arms (RTA) are designed to enhance the performance of your NC Miata MX-5 or Mazda RX-8 by providing precise toe and bump steer adjustment, critical for lowered vehicles. These arms address handling issues that arise when the factory links create excessive toe-in, causing poor handling and tire wear.
Key Features:
- Bumpsteer and Toe Adjustment: Allows for a wide range of adjustment to correct excessive toe-in and minimize bump steer, ensuring better handling and reduced tire wear, especially in lowered cars.
- Elimination of Bushing Deflection: By removing bushing deflection, these arms offer improved stability and response under hard acceleration, braking, and cornering.
- Rotating Clamp Design: The 360-degree rotating clamp system allows for easy, precise adjustment without the hassle of fumbling with jam nuts or worrying about the alignment of bearings.
-
Lightweight, High-Strength Construction:
- Gun-Drilled 2024 Aluminum Main Links reduce unsprung weight, improving performance without compromising strength.
- Titanium and Aluminum Components contribute to a lightweight, durable design that enhances the vehicle's overall handling dynamics.
- Teflon-Lined FK Heim Joints/Rod Ends provide low-friction, high misalignment movement, ensuring quiet operation and smooth articulation.
Benefits:
- Improved Handling and Stability: The adjustable nature of the arms allows for fine-tuning of rear suspension geometry, which improves dynamic handling, response, and cornering performance.
- Long-Lasting Durability: The use of advanced materials like 2024 aluminum and titanium ensures long-term durability and resistance to wear, making them suitable for both street and track use.
- Ease of Adjustment: The rotating clamp design simplifies the process of making alignment changes, eliminating the need to constantly check bearing orientation during adjustments.
- High Misalignment Capability: Stainless steel bump steer spacers and high misalignment rod ends allow for precise control over the alignment, enhancing suspension performance under load.
Applications:
- 2006-2015 Mazda NC Miata MX-5
- 2003-2012 Mazda RX-8
Additional Features:
- Computer-Aided Design (CAD) with Finite Element Analysis (FEA): Ensures optimal performance and structural integrity.
- Notched Bolt Design: Compatible with the factory pinch bolt system for easy installation.
Sold as a pair and Made in the USA, the SPL Mazda NC Miata Rear Toe Arms are the ideal upgrade for drivers looking to enhance the stability and handling of their vehicle, particularly in high-performance street or race applications.
